DMM Rigging Hubs 集繩器

多方向性的集繩器，應用在複雜的繩索和勾環連結

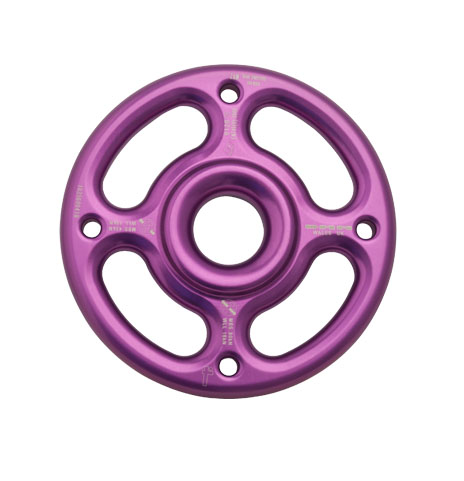

DMHUB108

直徑119mm，外圈勾槽負重率為45kN，內圈為80kN，重量260g

DMHUB175

直徑169mm，外圈勾槽負重率為45kN，內圈為150kN，重量550g

符合認證：EN795(b):2012 ， NFPA 1983 (2012 Ed) Class G

Four kidney shaped slots, a super strong central eye and four smaller hang points give numerous options for complex rigging. It can be carried on your harness or in a rescue pack with ease.

Rigging Hub PDF information sheet

Fall Protection Rescue Rope Access Tree Care
Features
Conforms to EN795(b):2012 and NFPA 1983 (2012 Ed) Class G
Breaking strength of 45kN (outer kidney slots) and 80kN (central eye)
Textile friendly connection points suitable for rope, webbing and opposed connectors
Central hole can accommodate a running rope and facilitates 3D rigging
CNC machined from top grade alloy for strength, durability and lightness
Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
Recommended for rescue and rigging applications
Individually marked for traceability
