ISC RED防墜器(鋁合金)
輪軸有一個主動鎖定彈簧,這意味著該設備是自我停放而不是自我拖尾。 這對於繩索訪問工作技術來說是非常重要的,因為他們需要定位備用裝置,以將墜落因素降到最低。
RED使用“旋轉制動”,這意味著設備順時針旋轉產生摩擦力和阻力,從而在突然拉動牛尾繩時(例如在主繩故障期間可能發生的)導致非常有效的自動制動。
Popper裝置是一個分離的釋放夾,為拖繩提供輔助連接點。 當在正常定位活動中使用時,該輔助連接點允許用戶直接向下牽引設備。 在恐慌的情況下,Popper裝置被設計成在用力施力下分離,此時防墜器會呈現咬住繩子自動停止狀態。
- CE EN12841A
- ANSI Z359.1
Rope diameter range (mm) |
10.5 - 11mm (3/8 - 7/16") |
Number of persons |
2 |
weight |
210g |
Rated capacity |
140Kg |
Rescue |
240Kg |


 |

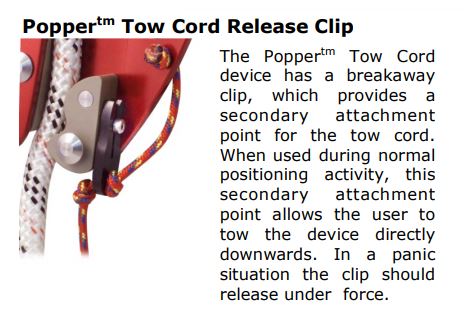

Popper裝置是一個分離的釋放夾,為引繩提供輔助連接點。
當在正常定位活動中使用時,該輔助連接點允許用戶直接向下牽引設備。 在恐慌情況下,釋放夾在施力下脫離。
|

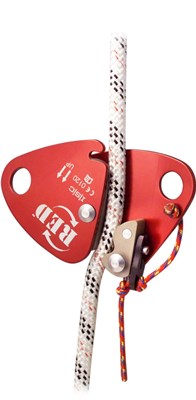

The RED's cams have a positively locking spring, which means that the device is self-parking rather than self-tailing. This is important for Rope Access work techniques as they require the back-up device to be positioned so as to reduce fall factors to a minimum.
The RED makes use of 'Rotational Braking' which means the device rotates clockwise creating friction and resistance, which then results in very effective automatic braking in the event of a sudden pull on the cows-tail such as might occur during a main line failure.

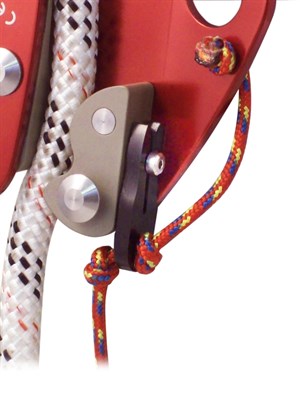

The Popper device is a breakaway release clip, which provides a secondary attachment point for the tow cord. When used during normal positioning activity, this secondary attachment point allows the user to tow the device directly downwards. In a panic situation the popper clip is designed to release under load and mitigate against uncontrolled towing of the device.
*Standard (fixed) tow cord & non-tow cord versions also available.
